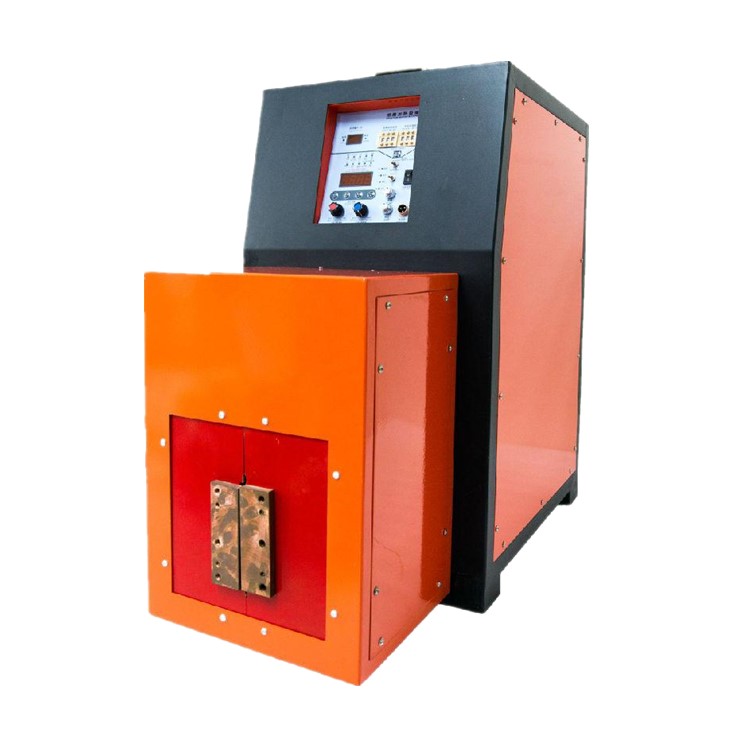

UHF 60kw 400k

technical parameter:

(1) Specification: RACG-60KW

(2) Maximum input power: 60KW

(3) Oscillation frequency: 400KHZ

(4) Heating current: 4.5～350A

(5) Input voltage: three-phase 380V 50HZ

(6) Load duration rate: no interruption

(7) Type A: heating and holding time: 0.1—99.9 seconds

(8) Cooling water requirements: ≥0.2MPa ≥6L/min

Main applications and features: This product is suitable for many heating purposes, such as: (1) heat treatment of large and small gears, large and small shafts and other parts (2) thin wire heating (3) smelting of crushed or powdered materials

The structure of this series of equipment adopts our company's third-generation inverter control technology, and uses MOS tubes as switching devices, so that the equipment can not only output high-power high-frequency power supplies with a frequency of up to 500 KHZ, but also have high equipment reliability. high frequencies are possible.

Advantages and applications with timing function: 1. The heating power, heating time, heat preservation power and heat preservation time are independently adjustable, which can effectively control the heating curve and heating temperature to a certain extent;

2. It is used for heating and rapid heating of workpieces with high repeatability;

3. When used in brazing, the combination of rapid heating and heat preservation functions is used to achieve rapid heating, and at the same time, heat preservation can be performed when the solder is melted, so that the solder can be fully spread;
